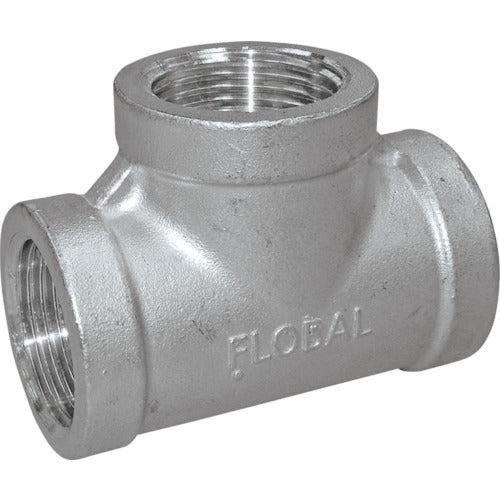

FLOBAL Cheese (SCS13A) 04100207 VT-10 1 piece

Catalog number: VT-10 Features: ●Compatible with stainless steel piping. ●This product is an upgrade over conventional threaded fittings and has been developed to be easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●A (mm): 46 ●D (mm): 51 ●Applicable standards: Complies with JIS B2301 and JIS B0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS13A)
