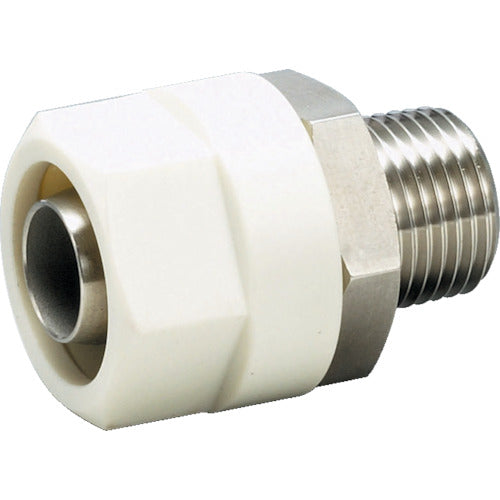

FLOBAL Blade Lock Stainless Steel Resin Nut Type 11100434 TBSA-0308 1 pc

Catalog number: TBSA-0308 Features: ●Compact and smart hose connection. ●Hose connection without dangerous protrusions. ●Safe and reliable seal structure with uniform tightening. ●Resin nut reduces weight and costs. Specifications: ●Nominal diameter: 3/8 ●Total length (mm): 43 ●Compatible hose (mm) inner diameter: 8 ●Two-sided width dimension (mm): 22 ●Use fluid: Water, air ●Compatible hose inner diameter (mm): 8 ●Weight (g): 65.6 ●Use fluid: Water, air ●Fluid temperature: Conforms to the blade hose used ●Use pressure: Conforms to the blade hose used Materials/Finish: ●Nut: Glass-reinforced polyacetal ●Pressing ring: Polyacetal ●Inner: Stainless steel (SUS304) ●Body: Stainless steel (SUS304) ●O-ring: Viton Caution: ●Strictly observe the specified hose diameter and allowable pressure. ●Cut the end of the hose at a right angle. ●Be careful not to slip your hand when inserting the hose. ●If it is difficult to insert the hose, apply water to the hose or warm the hose with warm water. ●Attach the nut to the body screw accurately and tighten it slowly.
