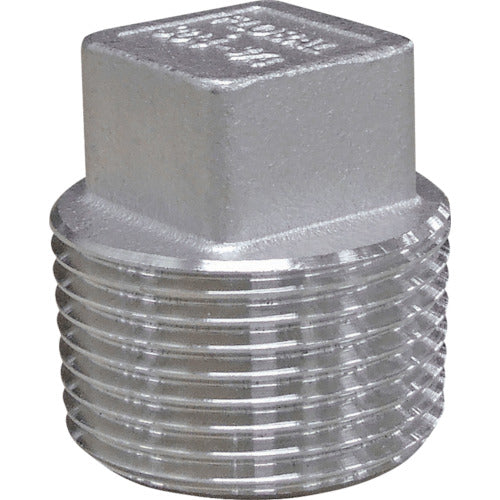

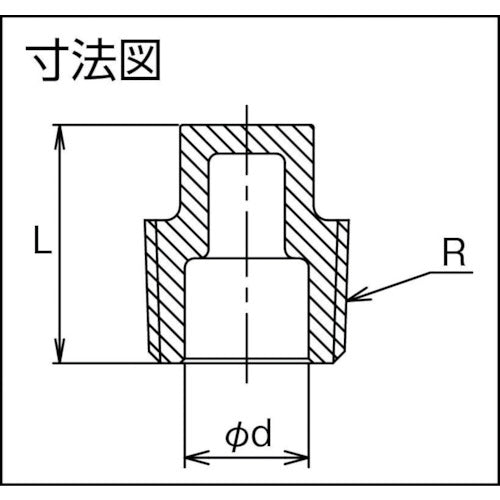

Catalog number: VP-02 Features: *Compatible with stainless steel piping. *This product is an upgrade over conventional threaded fittings and has been developed to be easier to use. Applications: *For steam, air, gas, and oil. Specifications: *Nominal diameter A: 8 *Nominal diameter B: 1/4 *L (mm): 19 *d (mm): - *Applicable standards: Complies with JIS B2301 and JIS B0203 *Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: *Stainless steel (SCS13A)
