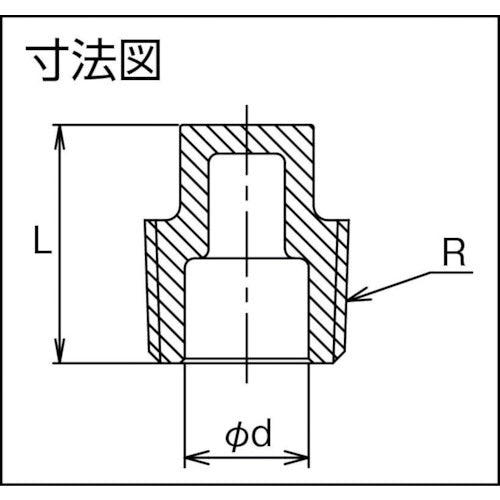

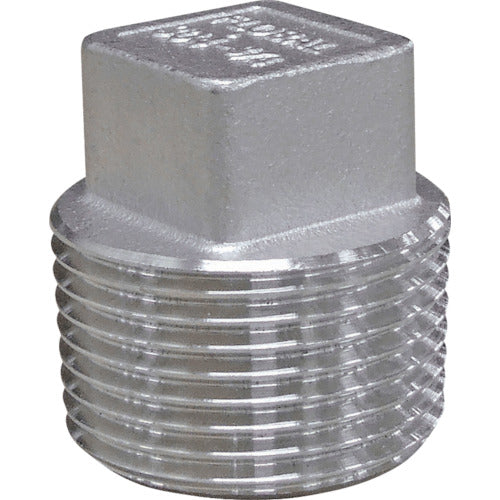

Catalog number: VP-08 Features: ●Compatible with stainless steel piping. ●This product is an upgrade over conventional threaded fittings and has been developed to be easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●L (mm): 31 ●Number of bolts ●d (mm): 22 ●Applicable standards: Complies with JIS B2301 and JIS B0203 ●Maximum operating pressure: 1.0 MPa (steam, air, gas, and oil below 300°C), 2.0 MPa (still water below 120°C) Material/Finish: ●Stainless steel (SCS13A)
