FLOBAL UNION (SCS13A) 04100508 VU-12 1 piece

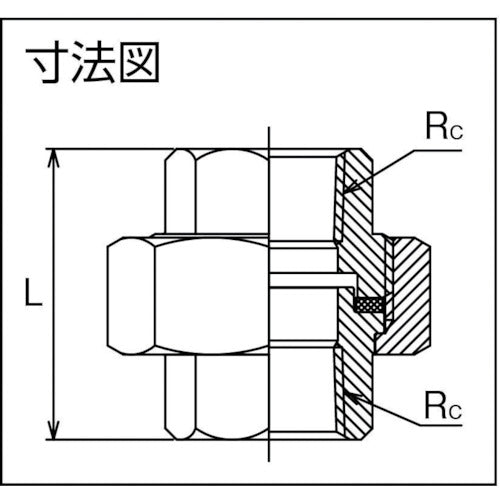

Catalog number: VU-12 Features: ●Compatible with stainless steel piping. ●This product is an upgrade over conventional screw-in fittings and has been developed to be easier to use. Applications: ●For steam, air, gas, and oil. Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●L (mm): 66 ●Applicable standards: Complies with JIS B2301 and JIS B0203 ●Maximum operating pressure: 1.0 MPa (air, gas, and oil below 200°C), 2.0 MPa (still water below 120°C), but steam is 0.5 MPa or less (up to 150°C) ●Usable fluids: water, air, gas, oil, steam (gas does not include toxic, flammable, or combustible gases.) ●Gasket uses Pillar Technograph sheet (Pillar No. 5650) Material/Finish: ●Stainless steel (SCS13A)
