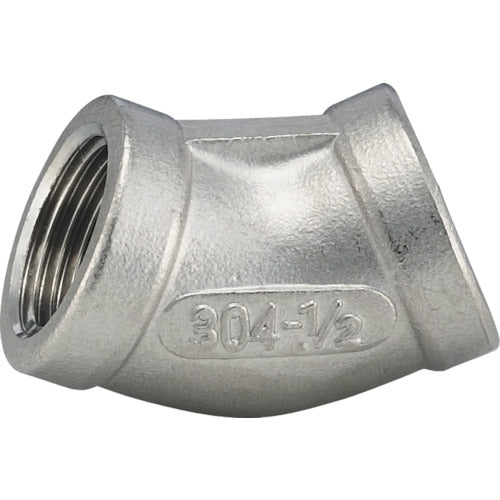

FLOBAL 45 degree elbow (SCS13A) 04100403 V45L-03 1 piece

Catalog number: V45L-03 Features: ● To meet the increasing demand for stainless steel piping ● A further upgrade of the conventional threaded fitting, with a wide range of sizes available, developed as an easier-to-use fitting. Applications: ● For steam, air, gas, and oil. ● For steam, air, gas, and oil. Specifications: ● Nominal diameter A: 10 ● Nominal diameter B: 3/8 ● Applicable standards: Compliant with JIS B2301 and JIS B0203 ● Maximum operating pressure: Steam, air, gas, and oil below 300°C 1.0MPa, still water below 120°C 2.0MPa Material/Finish: ● SCS13A
