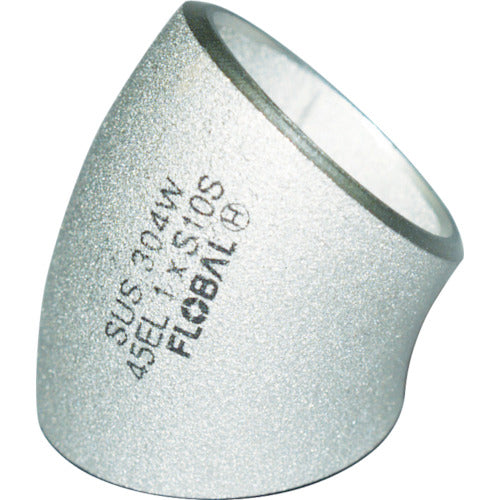

FLOBAL 45° Elbow (Long) S10S 09100024 B-45EL-10S-32A 1 pc

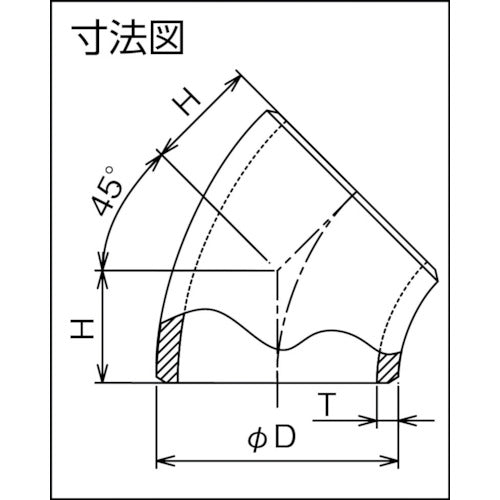

Catalog number: B-45EL-10S-32A Features: ● Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ● Stainless steel butt welded pipe fittings Applications: ● Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ● Nominal diameter A: 32 ● Nominal diameter B: 1 1/4 ● Outer diameter D (mm): 42.7 ● T (mm): 2.8 ● H (mm): 19.7 ● JIS B2313 standard product Material/Finish: ● Stainless steel (SUS304W)
