FLOBAL 90° Elbow (Short) S10S 09100041 B-90ES-10S-25A 1 pc

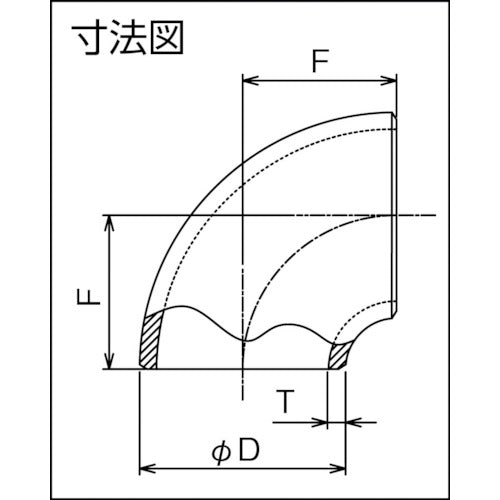

Catalog number: B-90ES-10S-25A Features: ● Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ● Stainless steel butt welded pipe fittings Applications: ● Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● Outer diameter D (mm): 34.0 ● T (mm): 2.8 ● F (mm): 25.4 ● JIS B2313 standard product Material/Finish: ● Stainless steel (SUS304W)
