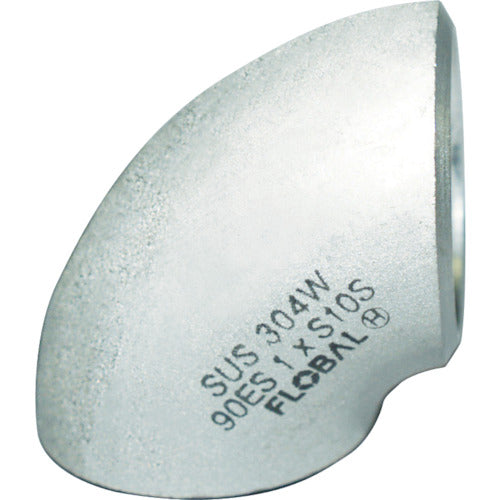

FLOBAL 90° elbow (short) S10S 09100043 B-90ES-10S-40A 1 piece

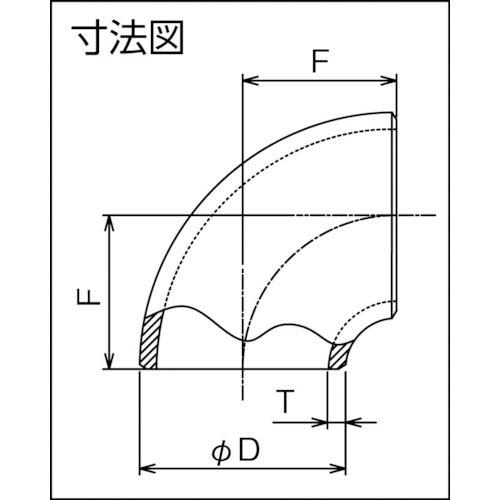

Catalog number: B-90ES-10S-40A Features: ●Manufactured using cold bending, hydraulic forming, and sheet metal drawing methods, etc., and intended for permanent piping connections by butt welding with stainless steel pipes, etc. ●Stainless steel butt welded pipe fittings Applications: ●Piping for gas plants, refineries, petrochemical plants, shipbuilding, etc. Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●T (mm): 2.8 ●Outer diameter D (mm): 48.6 ●F (mm): 38.1 ●JIS B2313 standard product Material/Finish: ●Stainless steel (SUS304W)
