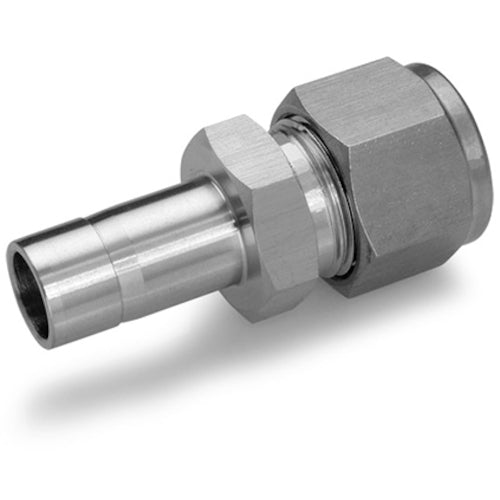

Fujikin New V-Lok 2 compression ring bite type stainless steel VUWR-9.52X9.52-V 1 piece

Catalog number: VUWR-9.52X9.52-V Features: ●Compression ring type fitting where tube is inserted and nut is tightened. No special tools or fire are required, and it can be repeatedly attached and detached. ●Tube connector can be connected by simply inserting tube and tightening nut, so no special tools or fire are required. Applications: ●For petroleum and petrochemical, general industrial processes, and instrumentation. Specifications: ●Applicable pipe outer diameter T (mm): 9.52X9.52 ●Hexagonal face (mm): 15.9 ●Dimension A (mm): 43.2 ●Maximum operating pressure (MPa): ●Maximum operating pressure (MPa): Depends on tube diameter (φ6.35 wall thickness 0.89: 35.8MPa) ●Liquid temperature (℃): -196 to 537 ●●Stainless steel Body material: ASTM A479 316
