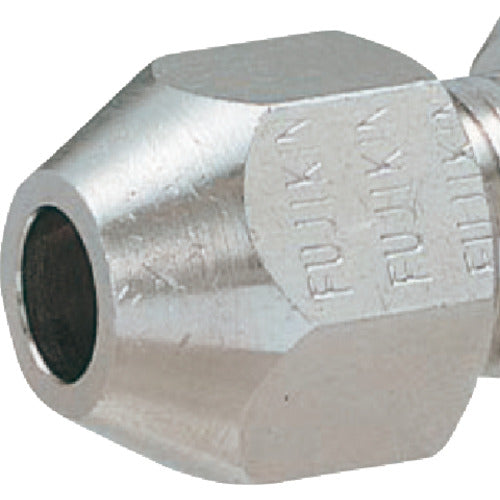

Fujikin Brass Ring Joint Fitting 2.94MPa R-10N-R 1 pc

Catalog number: R-10N-R Features: ●Compression ring type fitting where tube is inserted and nut is tightened. ●No special tools or fire required. ●Can be repeatedly attached and detached. ●For copper pipes. Applications: ●Various plant instrumentation air, oil lines, etc. Specifications: ●Applicable copper pipe outer diameter (mm): 10 ●Hexagonal face size (mm): 17 ●Dimension L (mm): 18 ●Maximum operating pressure (MPa): 2.94 ●Operating temperature range (℃): -45 to 125 Material/Finish: ●Brass Body material: C3604B
