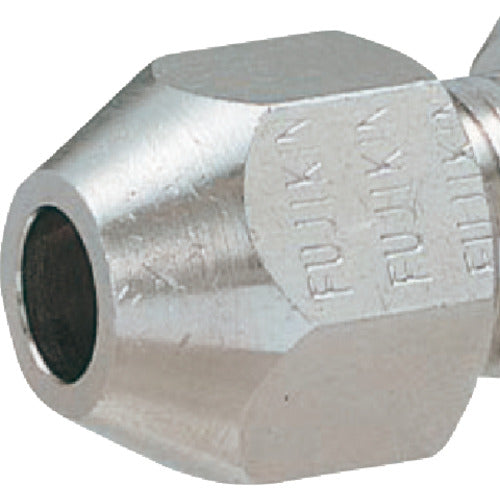

Fujikin Brass Ring Joint Fitting 4.9MPa R-6N-R 1 pc

Catalog number: R-6N-R Features: ●Compression ring type fitting where tube is inserted and nut is tightened. ●No special tools or fire required. ●Can be repeatedly attached and detached. ●For copper pipes. Applications: ●Various plant instrumentation air, oil lines, etc. Specifications: ●Applicable copper pipe outer diameter (mm): 6 ●Hexagonal face size (mm): 14 ●Dimension L (mm): 14.5 ●Maximum operating pressure (MPa): 4.9 ●Operating temperature range (℃): -45 to 125 Material/Finish: ●Brass Body material: C3604B
