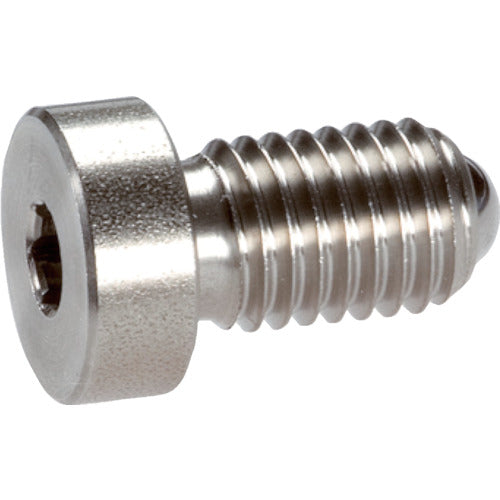

HALDER Spring Plunger Ball, Head, Hexagonal Socket Stainless Steel 22030.0942 1 piece

Catalogue number: 22030.0942 Features: ●Hexagonal hole, ball type plunger. ●With a head, the screw-in depth can be determined. Applications: ●For positioning, fixing, pressing, pushing away, etc. Specifications: ●Total length (mm): 15 ●Pole diameter (mm): 3.5 ●Pin diameter: M6 ●Head diameter (mm): 10 ●Pin length (mm): 10 ●Spring force (N): approx. 11-approx. 18 ●Slot talk (mm): 1 ●Two-face width (mm): 3 ●Max. temperature (℃): 250 ●Spring pressure: Standard Material/Finish: ●Body: Stainless steel 1.4305 (equivalent to SUS303) ●Ball: Stainless steel, hardened ●Spring: Stainless steel
