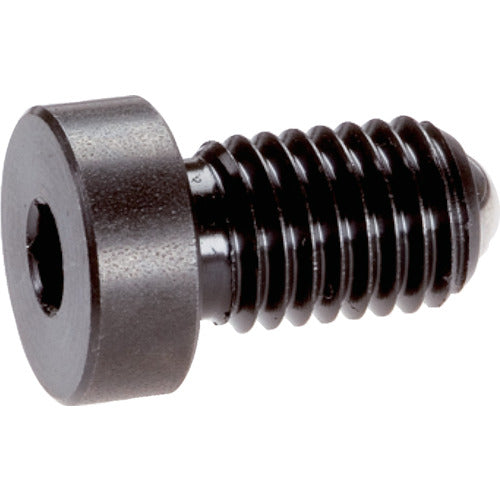

HALDER Spring Plunger Ball, Head, Hexagonal Socket Free Cutting Steel 22030.0934 1 piece

Catalogue number: 22030.0934 Features: ●Hexagonal socket ball plunger. ●With a head, the screw-in depth can be determined. Applications: ●For positioning, fixing, pressing, pushing away, etc. Specifications: ●Thread size: M10 ●Stroke (mm): 2 ●Pole diameter (mm): 6 ●Pin diameter: M10 ●Head diameter (mm): 16 ●Pin length (mm): 17 ●Spring force (N): approx. 24 to approx. 45 ●Body length (mm): 23 ●Two-sided width (mm): 5 ●Maximum operating temperature (℃): 250 ●Maximum operating temperature: 250℃ ●Spring pressure: Standard Material/Finish: ●Body: Free-cutting steel, blackened ●Ball: Bearing steel, hardened ●Spring: Stainless steel
