HALDER Socket Pin with Spring Pressure Ball Pin Diameter 6 Maximum Workpiece Thickness 50 22400.0075 1 pc

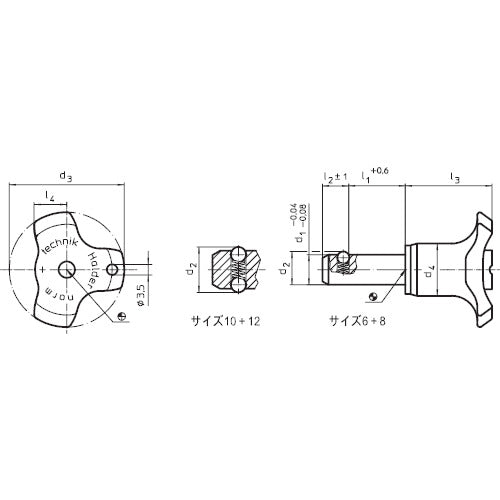

Catalog number: 22400.0075 Features: * Quickly secures, locks, replaces and positions parts and processed products. * Ideal for areas where attachment and detachment are repeated frequently. * Corrosion resistant. * Easy-to-use grip. * Unlike ball lock pins, this product does not have a locking mechanism. Applications: * Ideal for areas where attachment and detachment are repeated frequently. Specifications: ● Shear strength (kN): 22 ● d1: 6 ● d2: 6.5 ● d3: 38 ● l1: 50 ● l2: 5.0 ● l3: 27.0 ● l4: 10.8 ● Mounting hole H11: 6 ● Tensile load without lubrication (Nmax.): 8 ● d4: 17.3 ● Hole tolerance is H11 ● Operating temperature range: -30 to 80°C ● Can be fitted with holding cable EH22400. Material/Finish: ● Pin: Stainless steel 1.4305 (equivalent to SUS303) ● Grip: Polyamide 6 (PA6) ● Spring: Stainless steel Note: ● Unlike the type with a spring behind the ball, the ball is not locked. The pin will come out if pulled.
