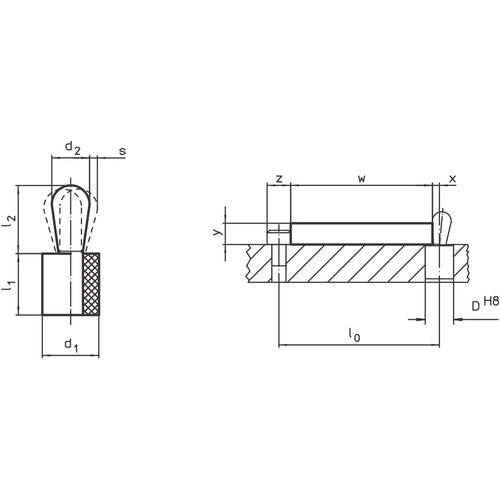

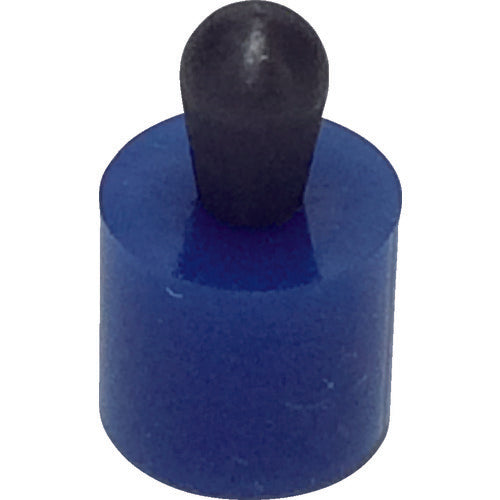

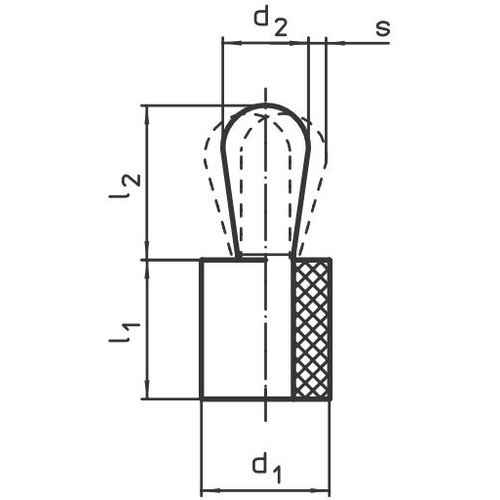

Catalogue number: 22150.0200 Features: ●The lateral spring force of the pin positions and presses the workpiece. ●The workpiece is pressed laterally to position it. ●Easy to install and does not take up much space. ●Used for positioning and pressing. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. ●For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 3 ●l2 (mm): 3.7 ●d1 (mm): 6 ●l1 (mm): 7 ●Spring force F (N, max): 10 ●Stroke s/x (mm): 0.4 ●Mounting hole D (mm): 5.9 ●Press-fit installation ●Comes with low-pressure plastic spring Material/Finish: ●Body: Plastic ●Pin: Steel, carburized, hardened, blackened ●Spring: Plastic
