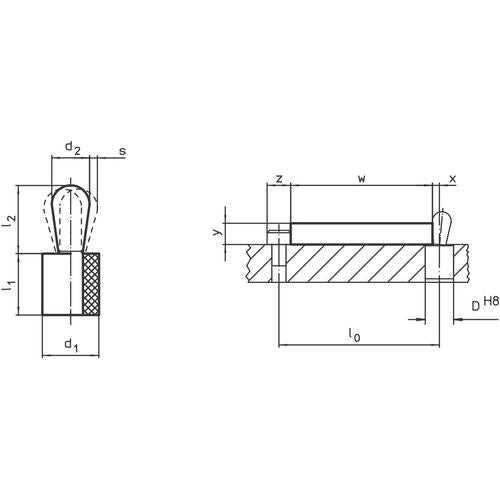

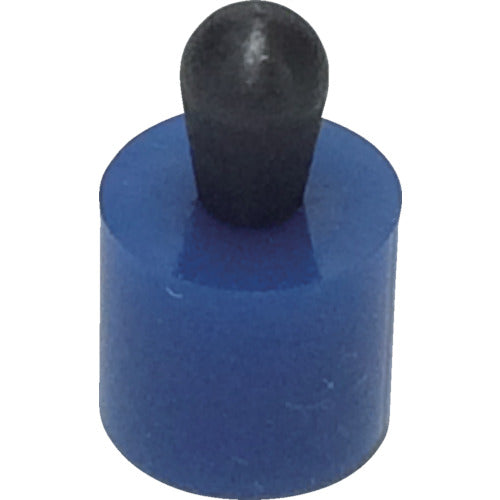

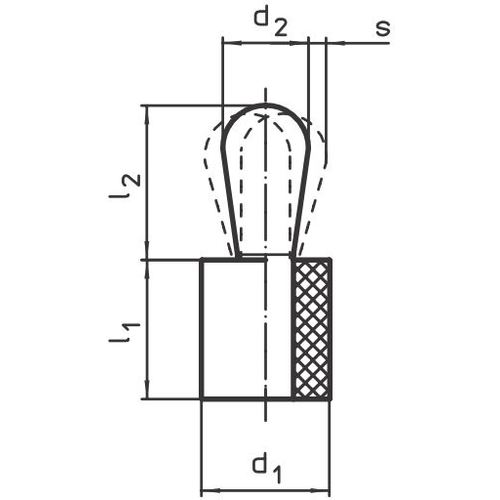

Catalogue number: 22150.0202 Features: ●Used for simple fixing of thin, lightweight parts. ●Presses the workpiece laterally to position it. ●Easy to install and does not take up much space. ●Used for positioning and pressing. Applications: ●Simple fixing of lightweight items such as printed circuit boards and plastic exteriors. ●For lateral positioning of lightweight workpieces. Specifications: ●d2 (mm): 4 ●l2 (mm): 5.2 ●d1 (mm): 8 ●l1 (mm): 9 ●Spring force F (N, max): 15 ●Stroke s/x (mm): 0.6 ●Mounting hole D (mm): 7.9 ●Press-in installation ●Comes with low-pressure plastic spring Material/Finish: ●Body: Plastic ●Pin: Steel, carburized, hardened, blackened ●Spring: Plastic
