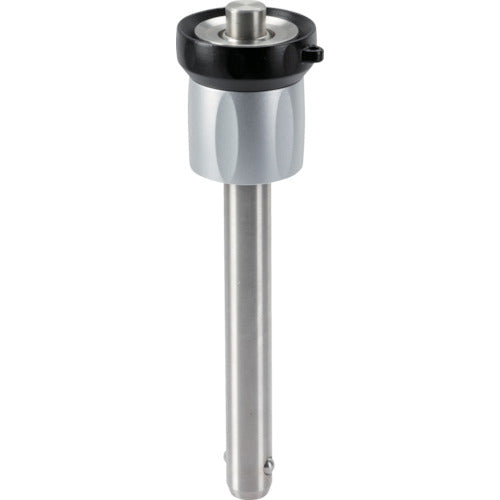

HALDER Ball Lock Pin Self-Locking With Length Adjustment Mechanism Pin Diameter 12 Workpiece Thickness 35-45 22370.0639 1 pc

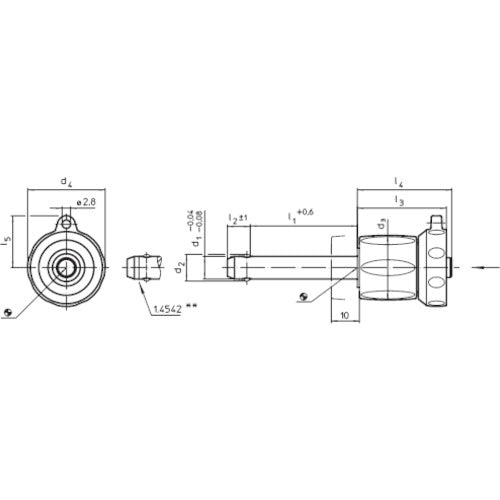

Catalogue number: 22370.0639 Features: * Quickly secures parts and processed products. * Length can be adjusted with the nut. * Clamp length can be adjusted steplessly by turning the nut and counter nut by hand. * Corrosion resistant. * Retaining cable (EH22400. sold separately) can be attached. Applications: * Locking adjustment mechanisms, fastening detachable parts, fixing movable parts, and as a substitute for screws and fasteners. Specifications: ● Shear strength (kN): 87 ● Clamp length (mm): 35-45 ● d1: 12 ● d2: 14.5 ● d3: 29.0 ● l1: 350-45 ● l2: 10.6 ● l3: 36.7 ● l4: 39.5 ● l5: 21.8 ● Mounting hole H11: 12 ● d4: 34.6 ● Self-locking function ● With lock release function ● Mounting hole tolerance: H11 ● Operating temperature range: -30 to 80°C ● With length adjustment mechanism Material/Finish: ● Pin: Stainless steel 1.4305 (equivalent to SUS303) ● Spring: Stainless steel ● Adjustment nut: Thermoplastic resin, silver ● Lock nut: Thermoplastic resin, black
