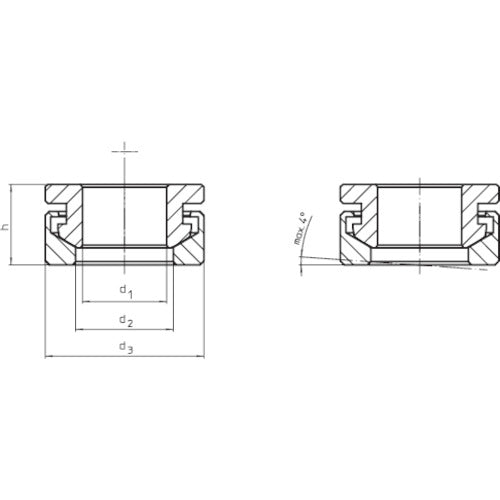

HALDER Spherical washer with conical seat, steel, 23050.0516, 1 piece

Catalogue number: 23050.0516 Features: ● A combination of a spherical washer and a conical seat. ● Used when the bolt and seat are not perpendicular. ● Always fully performs its functions. ● Easy and rational assembly and installation. ● Easy inventory management. ● Corrects the seat angle up to about 4 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M16 ● Outside diameter (mm): 32 ● Inside diameter (mm): 17 ● Height (mm): 17.0 ● Load capacity (static load) (max. kN): 73 ● Similar to DIN6319 ● Oscillation angle: Max. 4 degrees Material/Finish: ● Spherical washer: Hardened steel, carburized and hardened ● Conical seat: Heat-treated steel, heat-treated Note: ● The spherical washer and conical seat cannot be removed.
