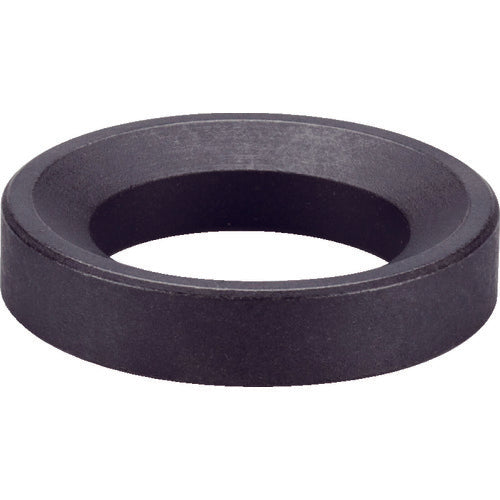

HALDER Conical seat Hardened steel Suitable bolt M30 23050.0230 1 piece

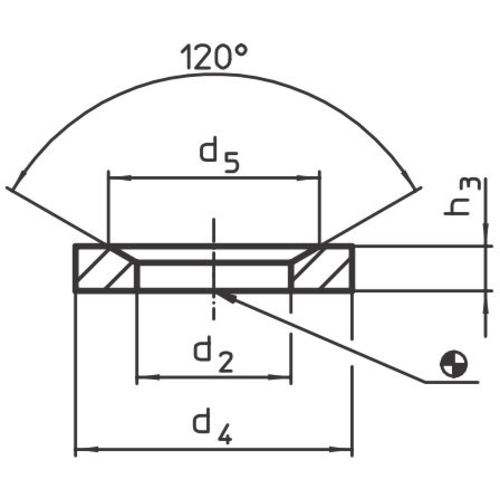

Catalogue number: 23050.0230 Features: ● Used in combination with a spherical washer when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M30 ● Outer diameter (mm): 68 ● Inner diameter (mm): 35 ● Height (mm): 12 ● Load capacity (static load) (max. kN): 269 ● Screw tightening torque (max. Nm): 1355 ● Shape G Material/Finish: ● Heat-treated steel ● Finish: Phosphate coating Caution: ● Always use shape G for long holes.
