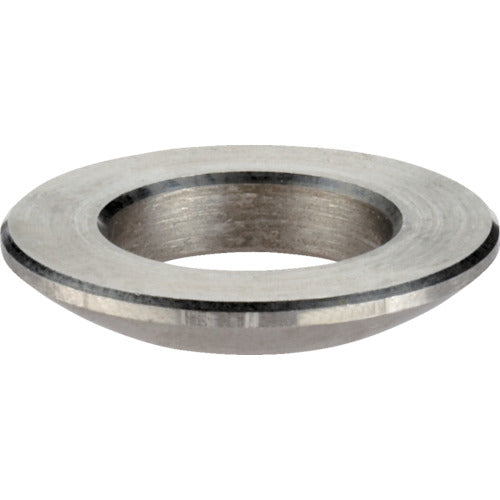

HALDER Spherical Washer Stainless Steel Fits Bolt M48 23050.0348 1 Piece

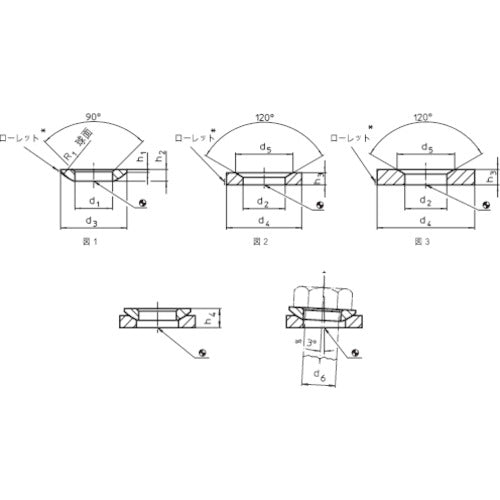

Catalogue number: 23050.0348 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by up to 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M48 ● Outer diameter (mm): 92 ● Inner diameter (mm): 50 ● Height (mm): 21 ● h4: Height when combined (mm) (conical seat D type): 35 ● Suitable bolt nominal diameter: 48 ● Shape C ● Friction coefficient: 0.12 Material/Finish: ● Stainless steel 1.4305 (equivalent to SUS303)
