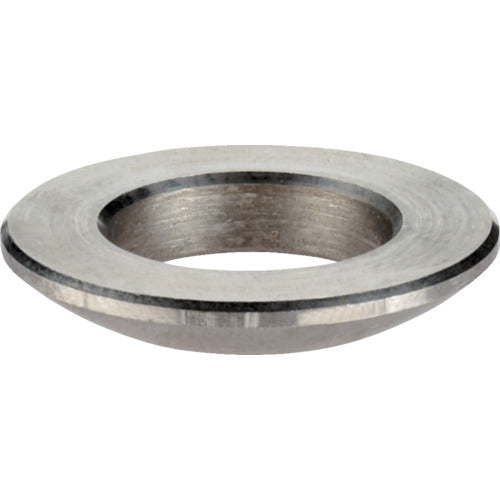

HALDER Spherical Washer Stainless Steel Fits Bolt M6 23050.0306 1 Piece

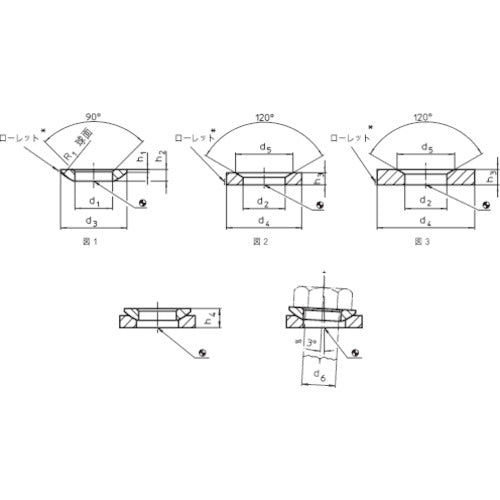

Catalogue number: 23050.0306 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M6 ● Outer diameter (mm): 12 ● Inner diameter (mm): 6.4 ● Height (mm): 2.3 ● h4: Height when combined (mm) Conical seat D type / Conical seat G type: 4/5.2 ● Suitable bolt nominal diameter: 6 ● Load capacity (static load) (max. kN): 6 ● Screw tightening torque (max. Nm): 6 ● Shape C ● Friction coefficient: 0.12 Material / Finish: ● Stainless steel 1.4305 (equivalent to SUS303)
