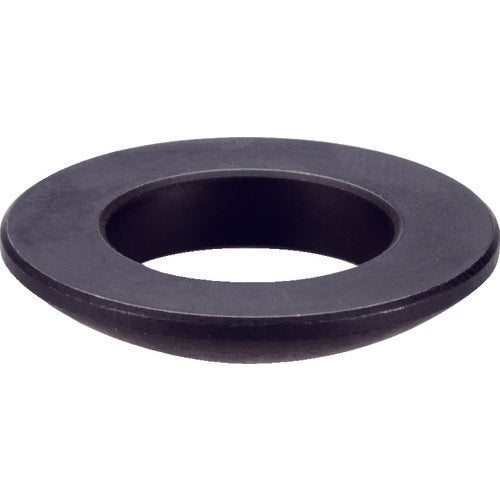

HALDER Spherical Washer Hardened Steel Suitable for Bolt M48 23050.0048 1 piece

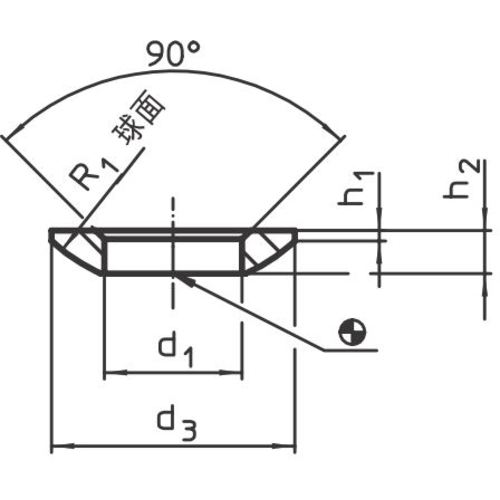

Catalogue number: 23050.0048 Features: ● Used in combination with a conical seat when the bolt and seat are not perpendicular. ● Corrects the seat angle by approximately 3 degrees. Applications: ● For bolt fixing on inclined surfaces such as castings and straps. Specifications: ● Suitable bolt: M48 ● Outer diameter (mm): 92 ● Inner diameter (mm): 50 ● Height (mm): 21 ● h4: Height when combined (mm) (conical seat D type): 35.5 ● Suitable bolt nominal diameter: 48 ● Screw tightening torque (max. Nm): 5730 ● Load capacity (static load) (max. kN): 714 ● Shape C ● Friction coefficient: 0.14 Material/Finish: ● Hardened steel (carburized and hardened) ● Finish: Phosphate coating treatment
