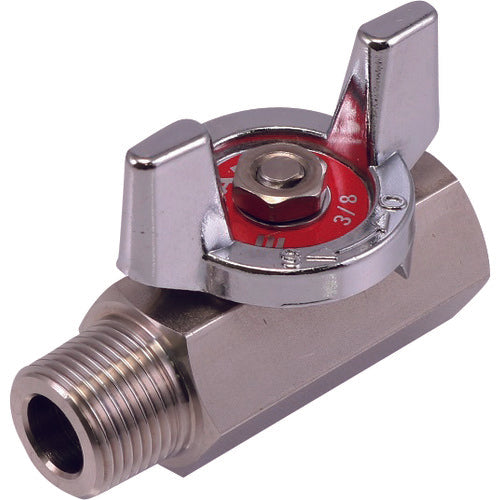

HAMAI Male x Female Connection Stainless Steel Small Diameter Ball Valve (06A to 15A) BSS-660-10RC 1 pc

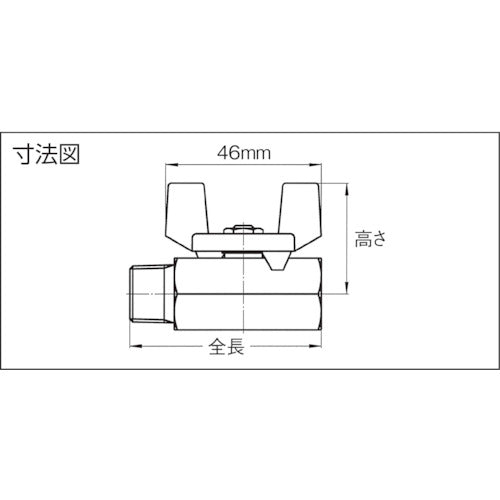

Catalog number: BSS-660-10RC Features: ●The main body is made of high-quality stainless steel (SUS316), and compared to cast products, the body is completely free of pinholes and cracks, making it highly corrosion-resistant. ●The male x female body reduces the labor required to attach the male fitting and reduces leakage from the connection. ●The small body/handle makes it easy to install and operate in narrow piping spaces. ●All airtight parts use PTFE, which has excellent corrosion resistance and durability. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 56 ●Height (mm): 33 ●Handle length D (mm): 46 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -20 to 180℃ (antifreeze) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 17.3 ●Face-to-face distance (mm): 56 ●Inner diameter (mm): 7.5 ●Connection: R×RC Material/Finish: ●Stainless steel (SUS316)
