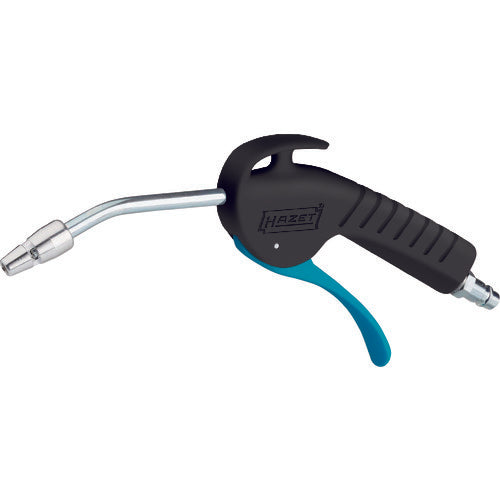

HAZET Air Blow Gun 100mm Vent Nozzle Venturi Nozzle 9040P-4 1 pc

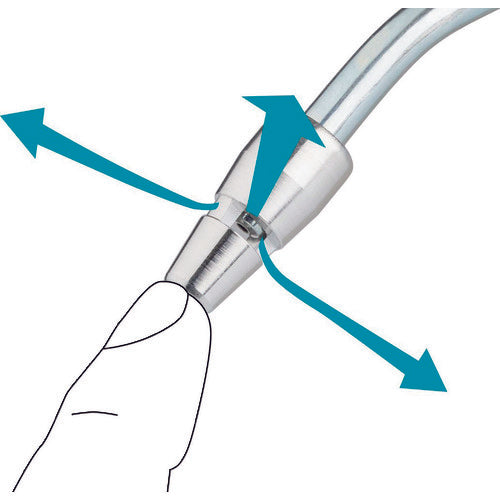

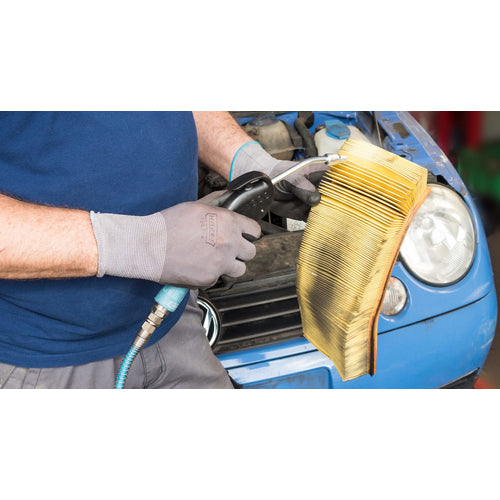

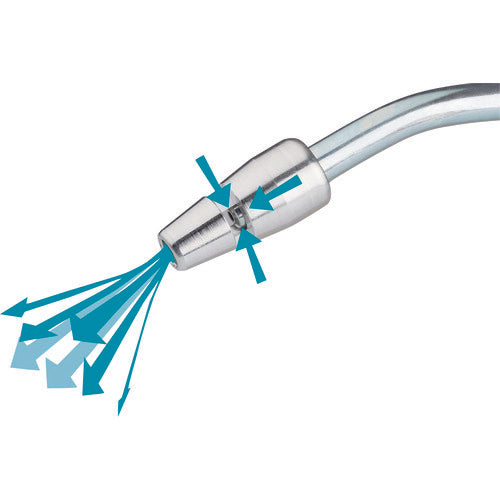

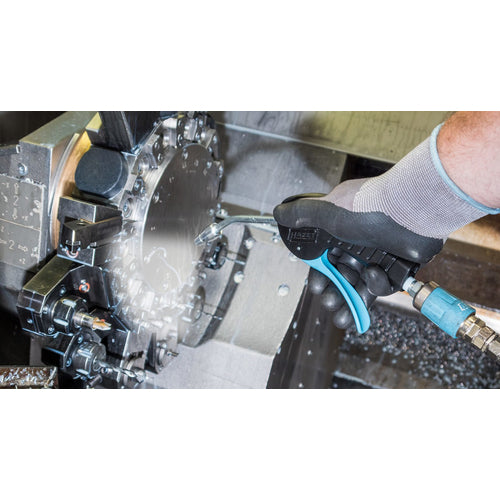

Catalog number: 9040P-4 Features: ●Widely usable for blowing away chips, dust, etc. ●The main body handle is made of plastic, and the nozzle is made of metal. ●The vent nozzle naturally points downward for good workability. ●The venturi nozzle doubles the air volume. ●The nozzle tip is a no-block type. Applications: ●For cleaning automobiles, industrial machinery, woodworking machinery, etc. Specifications: ●Product name: Air blow gun 100mm vent nozzle Venturi nozzle ●Thickness (plate) (mm): 22 ●Nozzle length (mm): 100 ●Total length (mm): 265 ●Mounting port: G1/4 ●Nozzle diameter (mm): 8 ●Air mounting port: G1/4 ●Nozzle type: Venturi nozzle ●Air consumption (［［M3］］/min): 0.235 ●Maximum operating pressure: 0.6Mpa ●100mm vent nozzle ●Venturi nozzle ●Maximum pressure resistance: 16bar ●Sound pressure: 83.7db Material/Finish: ●Body, lever: Plastic ●Nozzle, pipe: Metal ●O-ring: Nitrile rubber Set contents/Accessories: ●Japanese specification coupler: EA140DB-32
