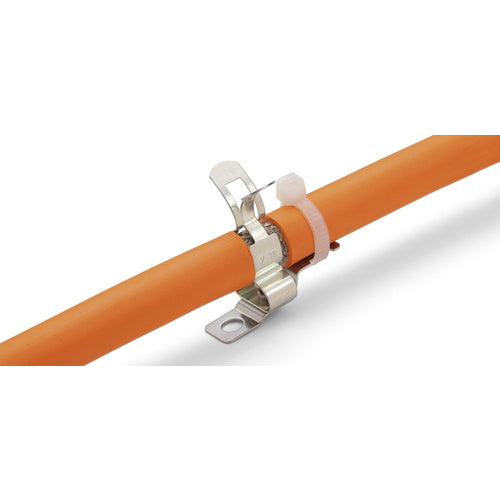

HEBOTEC EMC Countermeasures Shield Clamp Strain Relief Shield Diameter 7-18mm M4 Screw Mount 10 Pieces 1022-212 1 Bag

Catalog number: 1022-212 Features: ●Can be used as an EMC countermeasure. ●Cables can be held simply by pushing them in. ●Can be attached with screws. ●Strain relief is a function that uses a separate cable tie to secure the cable and reduce strain and damage to the sheath (coating). ●Reduces strain on the cable, extending its life. ●Clip has excellent conductivity and a large grounding area, reducing electromagnetic noise. Specifications: ●Color: Silver ●Type: Strain relief ●Maximum bundling diameter (mm): 18 ●Minimum bundling diameter (mm): 7 ●Fixing method: Screw fastening ●Screw size used: M4 ●EMC countermeasure Material/Finish: ●Spring steel (plated)
