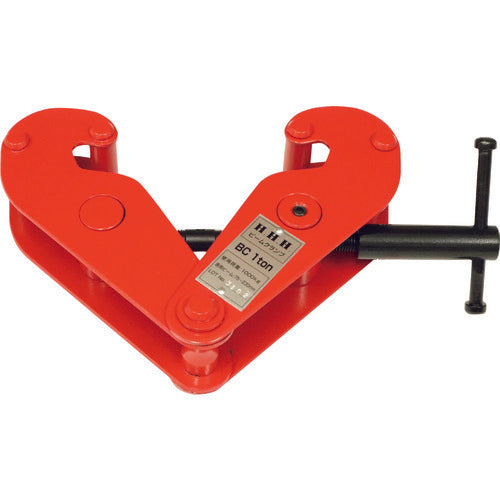

HHH Beam clamp 2t BC2TON 1 unit

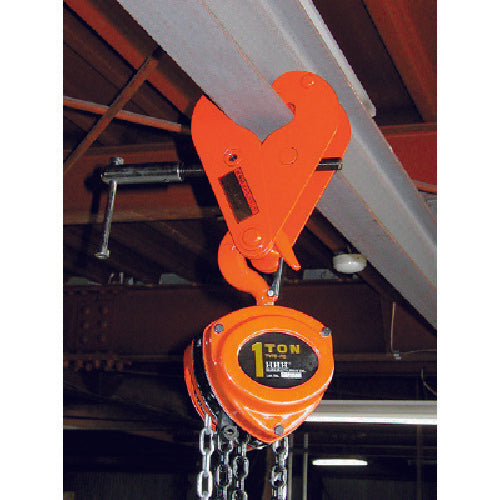

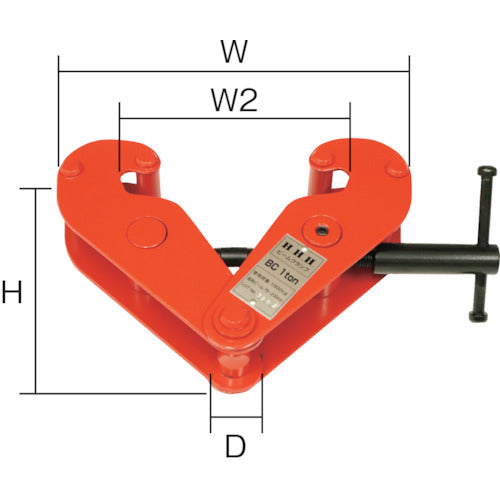

Catalog number: BC2TON Features: ●Easy to install, can be attached to non-standard beams. ●Attachment to and removal from beams can be done easily and quickly by simply turning the handle. ●Provides a connection point for H-steel and I-steel. Applications: ●Connecting hardware to beams for hanging with chain blocks, hoists, etc., and for pulling horizontally with lever blocks, etc. Specifications: ●Basic load capacity (t): 2 ●Suitable beam thickness (mm): 8-20 ●Suitable beam width (mm): 75-230 ●Dimensions (mm) D: 22 ●Dimensions (mm) H: 102 ●Dimensions (mm) W: 180-375 ●Dimensions (mm) W2: 75-284 ●Height (mm): 102 ●Width (mm): 180-375 ●Continuously variable clamp width Material/Finish: ●Steel Caution: ●Fixing screws are provided to prevent removal and loosening. When the beam clamp is permanently installed or there is vibration, tighten the fixing screws with a hex wrench for safety.
