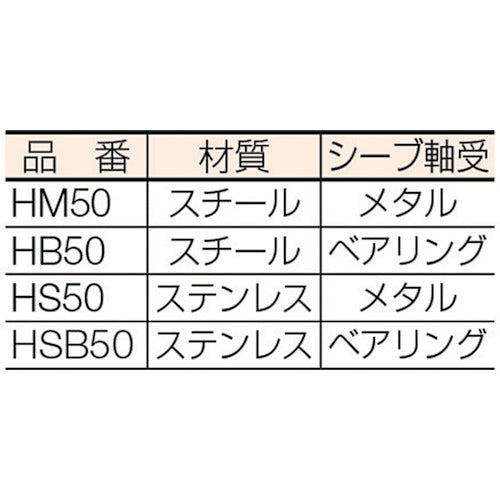

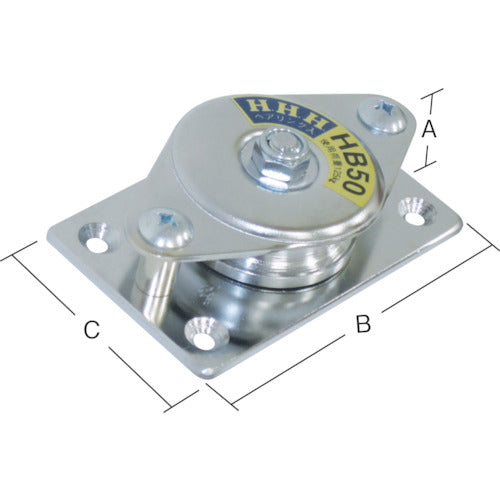

Catalogue number: HB50 Features: ● A simple and inexpensive fixed pulley. ● With a single Phillips head screwdriver, you can attach the rope even halfway. Applications: ● For loading and transporting work and as a rope guide. Specifications: ● Basic load capacity (t): 0.125 ● Maximum rope diameter (mm): 8 ● Number of wheels: 1 ● Wheel diameter (mm): 50 ● Dimensions (mm) A: 32 ● Dimensions (mm) B: 100 ● Dimensions (mm) C: 58 ● Material: Steel ● Sheave bearing: Bearing ● Maximum rope diameter: 8mm ● Bolt mounting type Material/Finish: ● Steel Caution: ● Be sure to install in a place with sufficient strength. ● Use a bearing-equipped pulley when rotating at high speed using electric equipment, etc.
