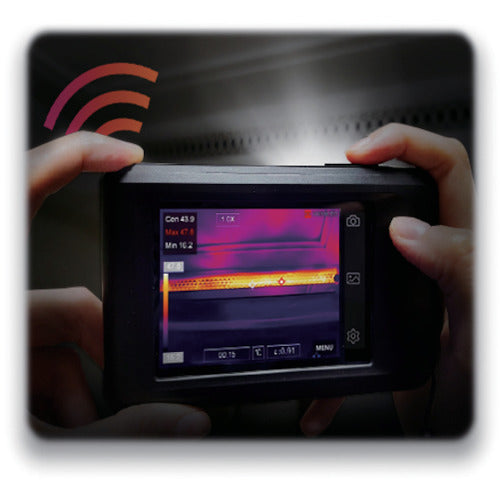

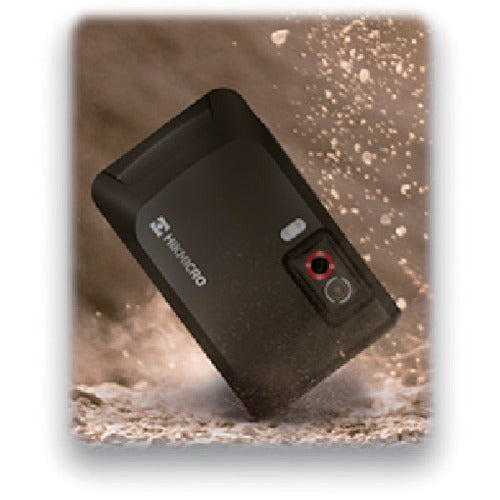

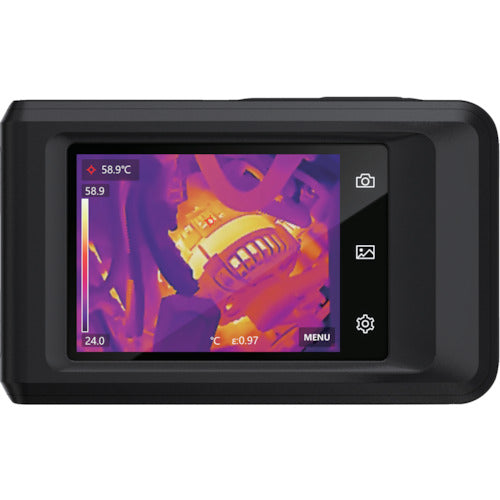

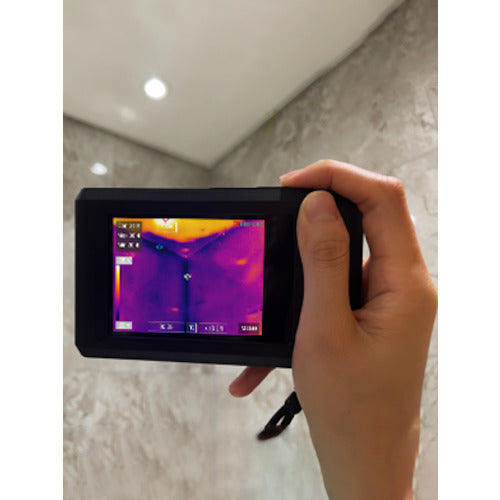

Catalog number: POCKET1 Features: ●With Wi-Fi function, Pocket can share images in real time. ●There are thermal, bispectral image fusion, PIP and visible light modes for different needs, and you can set it according to your preference. ●Equipped with a 3.5-inch LCD touch screen, the thermal image is clearer. Applications: ●Electrical predictive maintenance, building inspection, HVAC inspection ●Heating, cooling and air conditioning equipment (HVAC), indoor and outdoor diagnosis, water leakage diagnosis, measurement of overheating of distribution boards, breakers and wiring Specifications: ●Measurement temperature range (℃): -20 to 400 ●Minimum temperature display (℃): 0.1 ●Measurement field of view (°): 50 x 37.2 ●Spatial resolution (mrad): 3.43 ●Operating temperature range (℃): -10 to 50 ●Power supply (V): Lithium-ion battery ●Wi-Fi: 802.11b/g/n (2.4GHz) ●Operating temperature: -10℃ to 50℃ ●Storage temperature: -20℃ to 60℃ ●Protection level: IP54 ●Interface: USB Type-C ●Pixel spacing: 12μm ●Measurement wavelength: 8 - 14μm ●NETD: ＜ 40mK (@25℃), F#=1.0 ●Focal length: 3.6mm ●FOV (field of view): 37.2° x 50.0°●Frame rate: 25Hz●Focus system: fixed●IFOV (instantaneous field of view): 3.3mrad●Aperture: F1.0●Minimum focus distance: 0.3m (0.98ft)●Visible light resolution: 1600 x 1200 (2MP)●FOV: 55° x 42°●High temperature alarm: voice alarm●Recording media: EMMC (16GB)●Number of recordable images: 90000●Image file format: BMP (including measurement data)●LED light: Yes●Power consumption: 1.8W●Battery: Li-ion rechargeable battery●Battery life: 4 hours●Thermal image resolution: 192 x 144 (27648 pixels)●NETD: < 40 mK (@ 25℃, F#=1.0)●Temperature measurement range: -20℃ to 400℃●Accuracy: When the ambient temperature is 15°C to 35°C and the target temperature is 0°C or higher, the accuracy is up to (±2°C, ±2%). Frame rate: 25Hz. LCD display: 3.5 inches. Material/Finish: Polycarbonate, ABC resin. Set contents/Accessories: USB cable, adapter, strap, storage pouch.
