HOZAN Scale Sheet L-125 1 piece

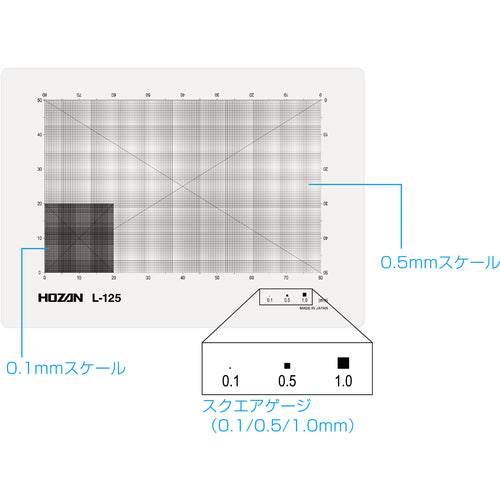

Catalog number: L-125 Features: ●Suitable for checking the size and measuring dimensions of minute parts, etc., so it can be used for observation at high magnification using a microscope or other instrument. ●Since the scale sheet has markings on the top, bottom, left and right, it can also be rotated up and down for use. Applications: ●For checking the size and measuring dimensions of minute parts, etc. Specifications: ●Width (mm): 105 ●Depth (mm): 75 ●Total scale length (mm): 80 ●Minimum scale (mm): 0.1 ●Scale (mm): 50 x 80 (±0.005mm) ●Line pitch (mm): 0.1/0.5 ●Scale sheet with two types of pitch (0.1mm/0.5mm) Material/Finish: ●Polyester
