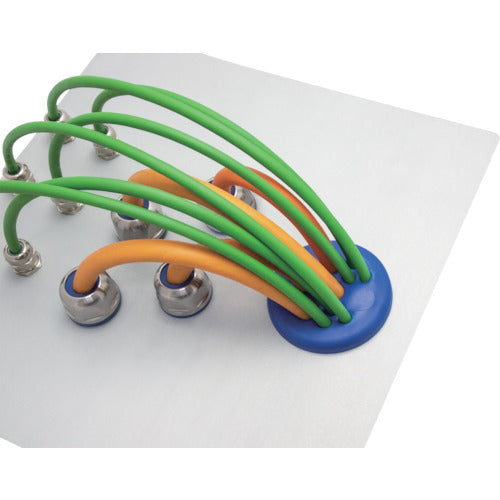

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 14 wires) KEL-DPZ-HD63/14-70361 1 piece

Catalogue number: KEL-DPZ-HD63/14-70361 Features: ●14 cables can be wired to one cable entry plate. ●14 cables of 5 to 10.2 mm can be wired to a 63 mm through hole. Applications: ●For control panels of food manufacturing and processing equipment, and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue; Suitable wire diameter (mm): 5-10.2 x 14; Mounting screw: 63mm; Wrench size (mm): 63; Suitable plate thickness: 1.5-6mm; Height (mm): 22; External dimensions (mm): 75; Mounting hole diameter (mm): 63.4; H (mm): 8; Screw size (mm): M63X1.5; Maximum insertable cable outer diameter (mm): 10.2; Number of holes: 14; Number of holes (pcs): 14; FDA compliant; 1935/2004/EG compliant; (EU)10/2011; Surface Ra = 0.421 μm; ISO 4287; IP68; ECOLAB approved; EN ISO 14644; Material/Finish: Body: Polyamide, Elastomer
