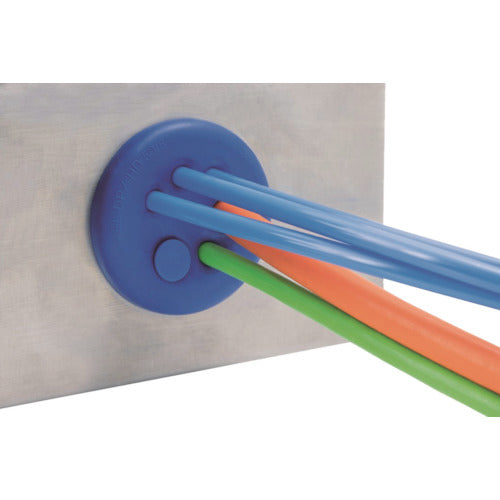

icotek [Sold out item] Aggregated round cable entry plate (FDA compliant, 19 wires) KEL-DPZ-HD50/19-70358 1 piece

Catalogue number: KEL-DPZ-HD50/19-70358 Features: ●19 cables can be wired to one cable entry plate. ●19 cables of 3.2 to 6.5 mm can be wired to a 50 mm through hole. Applications: ●For control panels of food manufacturing and processing equipment, and pharmaceutical manufacturing equipment. For reducing the number of wiring holes. Specifications: Color: Blue; Suitable wire diameter (mm): 3.2-6.5 x 19; Mounting screw: 50mm; Wrench size (mm): 50; Suitable plate thickness: 1.5-6mm; Height (mm): 22; External dimensions (mm): 62; Mounting hole diameter (mm): 50.4; H (mm): 8; Screw size (mm): M50x1.5; Maximum insertable cable outer diameter (mm): 6.5; Number of holes: 19; Number of holes (pcs): 19; FDA compliant; 1935/2004/EG compliant; (EU)10/2011; Surface Ra = 0.421 μm; ISO 4287; IP68; ECOLAB approved; EN ISO 14644. Material/Finish: Body: Polyamide, elastomer.
