アイコテック社

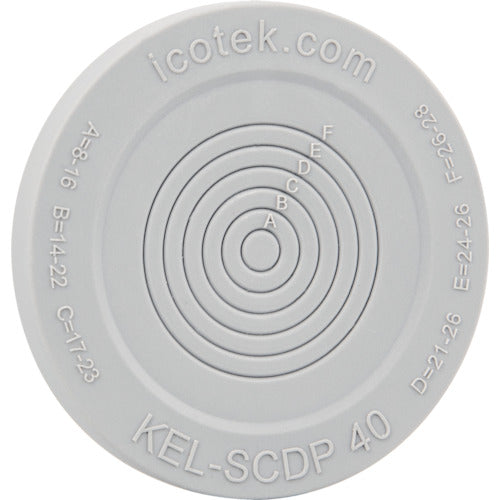

icotek Membrane One-touch Grommet (Wiring Diameter 8-28mm) KEL-SCDP40-43482 1 pc
icotek Membrane One-touch Grommet (Wiring Diameter 8-28mm) KEL-SCDP40-43482 1 pc
Regular price
¥805
Regular price
Sale price
¥805
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: KEL-SCDP40-43482 Features: ●One membrane grommet can hold a variety of outer diameters. ●Can accommodate wiring with outer diameters of 8 to 28 mm, and is pushed into a 40 mm through hole. Uses: ●For power lines and captive cables Specifications: ●Color: Gray ●Compatible wire diameter (mm): 8-28 ●Mounting screw: 40mm ●Compatible plate thickness: 1.5-4.0mm ●Length (mm): 11 ●Type: Grommet ●External dimension (mm): 47 ●Mounting hole diameter (mm): 40.4 ●H (mm): 11 ●Screw size (mm): M40x1.5 ●Maximum insertable cable outer diameter (mm): 28 ●Number of holes: 1 ●Number of holes (pcs): 1 ●Halogen-free ●Silicone-free ●UL94-V0 ●ECOLAB approved ●Protection rating: IP65 ●EN ISO 14644 ●ISO 4892-2A Material/Finish: ●Body: Elastomer
