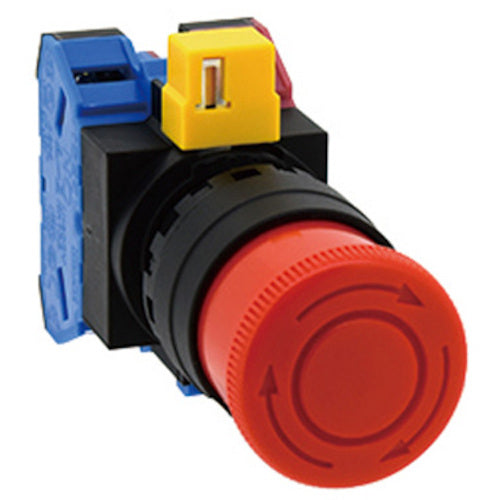

IDEC Φ22 emergency stop push button switch HW1B-V311R 1 piece

Catalog number: HW1B-V311R Features: ●●Φ22 HW series emergency stop push button switch. ●Direct circuit operation function (Complies with IEC60947-5-5; Clause 5.2, IEC60947-5-1 Annex K) ●IDEC's unique safety lock mechanism prevents malfunction. (IEC60947-5-5; Clause 6.2) ●SS terminal with finger protection structure realizes safety and labor saving. ●Uses rolling contact method that self-cleans the contact part. ●c-UL certified and EN standard compliant. Specifications: ●●Mounting hole size Φ22 ●Contact configuration 1a1b ●Protection structure IP65 ●Button color Red (R) ●Button size Φ29 ●Illumination type Non-illuminated ●Operation method Push lock turn reset ●Operation method Emergency stop push button switch ●Terminal shape M3.5 screw terminal ●Contact structure Contact separation type
