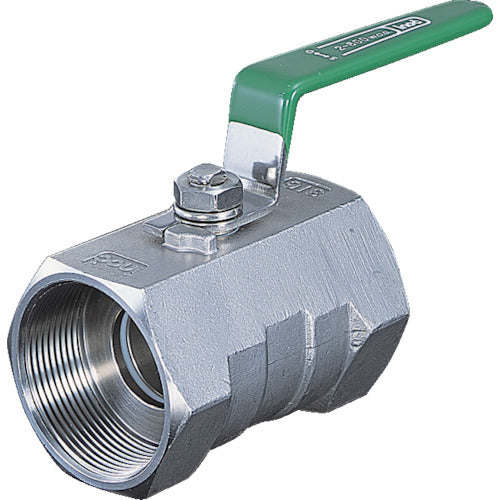

inoc screw-in ball valve, total length 71.0 mm, nominal diameter (A) 25, 316SRVM25A, 1 piece

inoc screw-in ball valve, total length 71.0 mm, nominal diameter (A) 25, 316SRVM25A, 1 piece

JAN：4571130776937 　
Ball valve Construction and lighting supplies Enoch Joint Pipework Equipment valve
¥5,639
¥5,639
Sale Sold out
Shipping calculated at checkout.

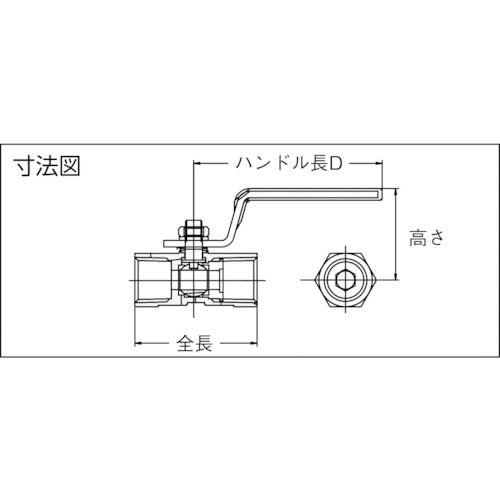

Catalog number: 316SRVM25A Features: ● Lever handle type. Applications: ● For water, oil, and gas. Specifications: ● Nominal diameter A: 25 ● Nominal diameter B: 1 ● Overall length (mm): 71.0 ● Height (mm): 50 ● Handle length D (mm): 105 ● Nominal diameter (mm): 34.00 ● Reduced bore type ● Maximum pressure 5.49 MPa (static water at room temperature) Material/Finish: ● Stainless steel (SCS14A)
