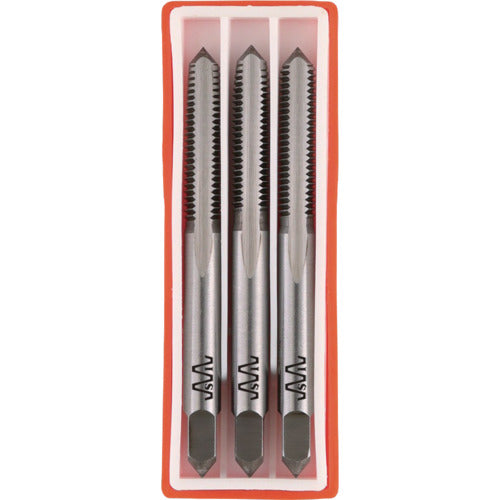

ISF SKS Hand Tap Metric Thread, Coarse Thread [Set of 3] M5X0.8 IS-S-HT-M5X0.8-S 1 set

Catalogue number: IS-S-HT-M5X0.8-S Features: ● A general tap used in a wide range of applications. ● The base material is SKS2 steel, making it economical. Applications: ● Machined threads: Metric threads ● Workpiece: General steel, light alloys Specifications: ● Tip: Tip, middle, top ● Nominal size: M5 ● Pitch (mm): 0.8 ● Overall length (mm): 60 ● Shank diameter (mm): 5.5 ● Shank square section (mm): 4.5 ● Pilot hole diameter (mm): 4.2 ● Machined thread: Metric thread ● Thread length (mm): 22 ● Set of 3: tip, middle, and top. ● Tap grade: JIS grade 3 ● Set includes 1 each of (tip), (middle), and (top). Material/Finish: ● Alloy tool steel (SKS2)
