JOPLAX Hollow Fiber Membrane Filter (Multipurpose) TF-20N-D 1 pc

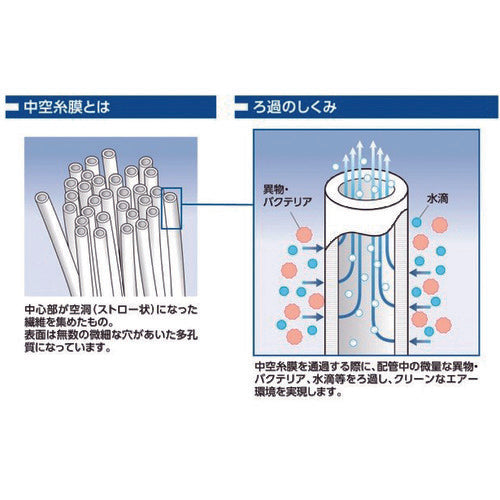

Catalog number: TF-20N-D Features: ●Uses a hollow fiber membrane filter with a filtration accuracy of 0.01 microns. ●Shuts out water droplets and foreign objects in the piping. ●For supporting the main filter system. ●Convenient for in-line use in the middle of hose piping. Applications: ●For air blow and air piping in precision machinery, printing, painting, food, optical parts, etc. Specifications: ●Filtration accuracy (μm): 0.01 ●Outer diameter (mm): φ21 ●Length (mm): 83 ●Connection diameter: Bamboo shoot (opposite hose inner diameter Φ10mm) ●Compatible fluid: Air ●Fluid temperature: 5 to 50°C ●Normal pressure: 0 to 0.8MPa ●Membrane area: 80 [cm2] Material/Finish: ●Hollow fiber membrane filter: Polypropylene (PP) ●Case: Polycarbonate (PC)
