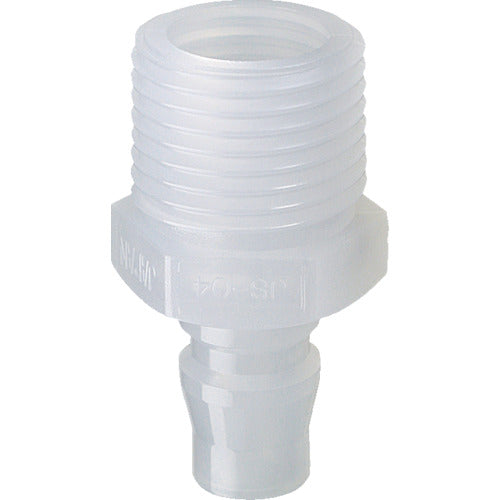

JOPLAX Resin Plug, Mating Side Mounting Rc (PT) 1/2, JOPLAX PP Series, JS-04P, 1 Piece

Catalog number: JS-04P Features: ●One-touch connection method allows for easy installation and removal. ●Used in the food, chemical and medical fields. Applications: ●Joint for hose piping. Specifications: ●Hexagonal face size (mm): 22 ●Operating temperature range (℃): 0-50 ●Maximum operating pressure (MPa): 0.7 ●Operating fluid: Water, chemicals (check each time) ●Hexagonal face size (mm) body: 22 ●Operating temperature (℃): 0-50 ●Operating pressure: 0-0.7Mpa ●Operating pressure (MPa): 0.7 ●Mounting size: R(PT)1/2 ●Proper tightening torque: 3.0N・m or less ●Matching side mounting size: Rc1/2 ●Liquid contact parts comply with the Food Sanitation Act/PL listed material used ●Excellent chemical resistance ●Fluid temperature: 0-50℃ ●Normal pressure: 0-0.7MPa Material/Finish: ●Polypropylene (PP)
