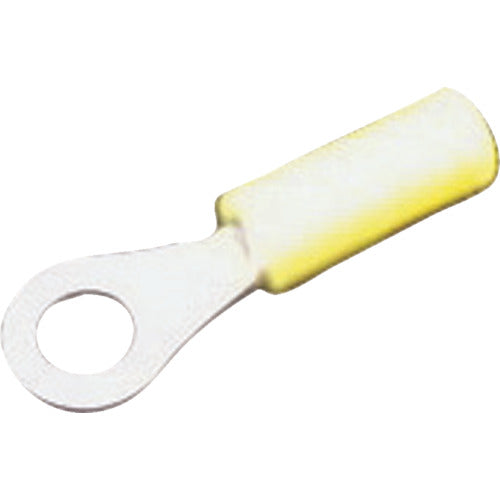

JST vinyl insulated round terminal (straight type) V5.5-S5 100 pieces V5.5-S5 1 bag

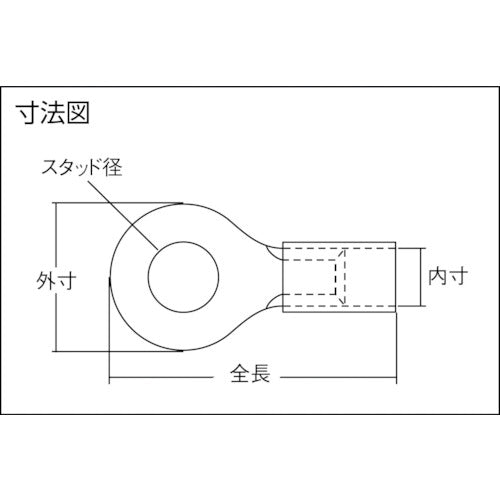

Catalog number: V5.5-S5 Features: ● An insulated crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● Used to connect soft copper stranded wires. Specifications: ● Wire clamping range Stranded wire (mm2): 2.63 to 6.64 ● Wire clamping range AWG: 12/10 ● Color: Yellow ● External diameter (mm): 13.2 ● Stud diameter (mm): 5.3 ● Total length (mm): 29.1 ● Internal dimensions (mm): 5.4 ● JIS standard product: × ● Round (not compatible with solid wire) ● 0.5SQ: Yellow ● 1.25SQ: Red ● 2SQ: Blue ● 5.5SQ: Yellow Materials/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ● Insulation: Vinyl
