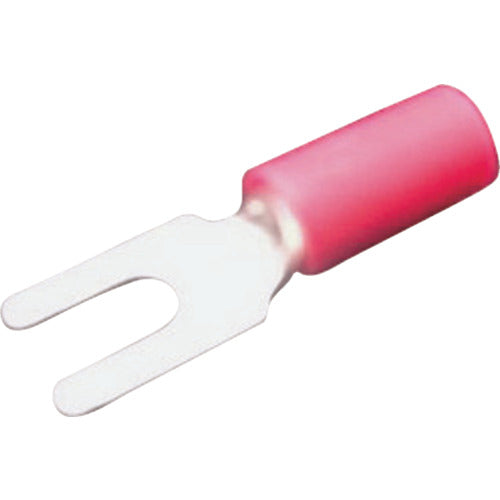

JST Vinyl insulated square tip open terminal (straight type) V1.25-YS3A 100 pieces V1.25-YS3A 1 bag

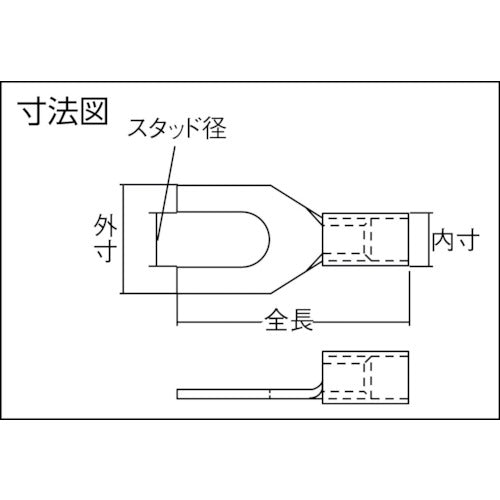

Catalog number: V1.25-YS3A Features: ●One side of the mounting hole on the contact surface (tongue) is open, so this is an insulated crimp terminal that can be installed without completely removing the screw. Applications: ●Used to connect soft copper stranded wire. Specifications: ●Wire clamping range Stranded wire (mm2): 0.25-1.65 ●Wire clamping range AWG: 22-16 ●Color: Red ●External diameter (mm): 6.4 ●Stud diameter (mm): 3.7 ●Total length (mm): 19.6 ●Inner dimension (mm): 3.2 ●JIS standard product: × ●External dimensions (mm): 6.4 ●Open tip type (not compatible with solid wire) ●1.25SQ: Red ●2SQ: Blue Materials/Finish: ●Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating ●Insulation: Vinyl
