JST Round Terminal HK2-3 100pcs HK2-3 1 bag

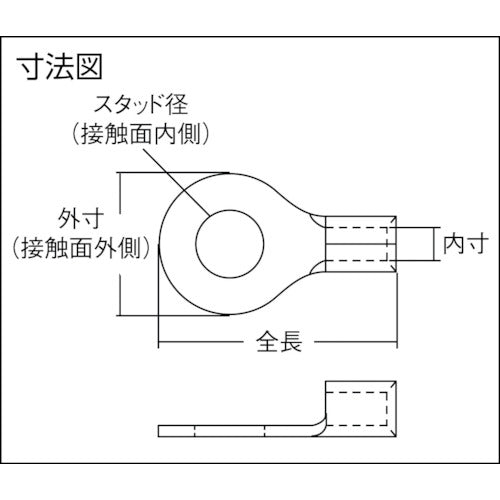

Catalogue number: HK2-3 Features: ● A bare crimp terminal with a rounded contact surface (tongue) and mounting holes for screw fixing. Applications: ● Used to connect soft copper stranded wire or solid wire. Specifications: ● Wire clamping range Solid wire (mm): 1.14-1.82 ● Wire clamping range Stranded wire (mm2): 1.04-2.63 ● Wire clamping range AWG: 16-14 ● External diameter (mm): 6.8 ● Stud diameter (mm): 3.7 ● Total length (mm): 16.8 ● Internal dimension (mm): 2.3 ● JIS standard product: × ● Color: Silver ● Round shape Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
