日本圧着端子製造（株）

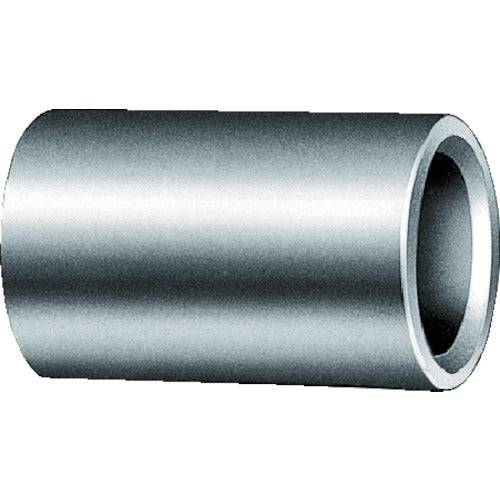

JST Stacking Sleeve (P Type) P-60 10 Pieces P-60 1 Bag
JST Stacking Sleeve (P Type) P-60 10 Pieces P-60 1 Bag
Regular price
¥1,463
Regular price
Sale price
¥1,463
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: P-60 Features: ● The tube has a straight shape. Applications: ● For crimping and connecting overlapping electric wires inside the sleeve (inside the tube). Specifications: ● Wire clamping range Stranded wire (mm2): 42.42-60.57 ● Wire clamping range AWG: 1/0 ● Total length (mm): 19 ● Inner dimensions (mm): 11.4 ● JIS standard product: ○ ● Color: Silver ● External dimensions (mm): 15.3 Material/Finish: ● Terminal: Oxygen-free copper (C1020)/Electrolytic tin plating
