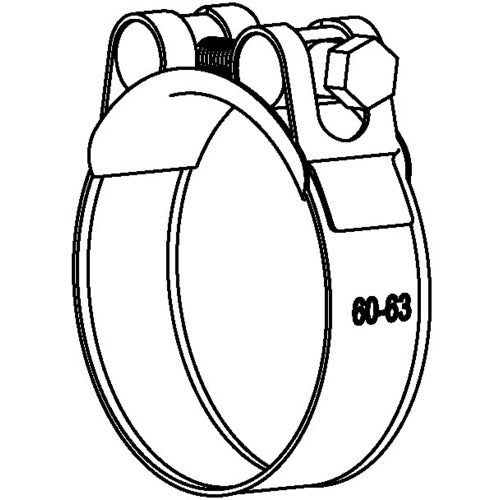

Catalog number: JSC073SS Features: ●Same size as the standard type, but achieves high torque tightening. ●All stainless steel construction with excellent corrosion resistance. ●Smooth finish on the contact surface with the hose, so it will not be damaged. ●Can be tightened strongly while maintaining its round shape. Applications: ●Oil plants, fueling facilities, agricultural equipment, heavy machinery, etc. ●For fastening pneumatic and hydraulic piping, construction equipment, etc. Specifications: ●Maximum diameter (mm): 73 ●Minimum diameter (mm): 68 ●Band width (mm): 25 ●Thickness (mm): 1.2 ●Tightening torque (N・m): 18.5-25.0 ●Hexagonal bolt (mm): 13 ●DIN3017 standard acquired, SAE J1508 (Type TB), salt spray test (NSS): 1000 hours ●Hexagonal bolt: 13mm Material/Finish: ●Stainless steel (SUS304)
