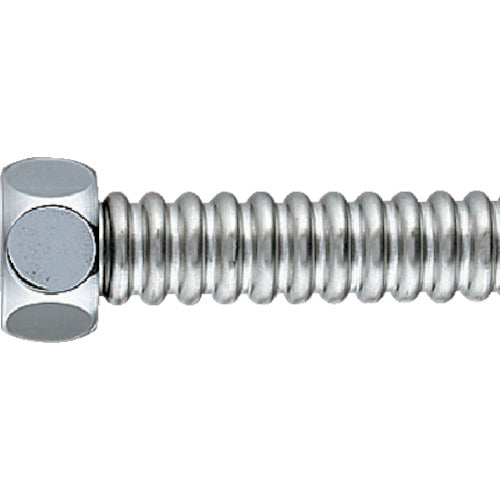

KAKUDAI Flexible Water Pipe 0784B-13X500 1 pc

Catalog number: 0784B-13X500 Features: ●Due to skilled annealing technology, this flexible pipe is strong and easy to bend. ●The mounting screw is a parallel pipe thread. ●Certified by the Japan Water Works Association. Applications: ●Water supply to washbasin units and instantaneous water heaters. Specifications: ●Thread size: G1/2 ●Pipe outer diameter (mm): 16 ●Total length (mm): 500 ●Hexagonal face (mm): 23.0 ●Thread diameter: G1/2 ●Pipe crest outer diameter (mm): 16.0 ●Pipe crest inner diameter (mm): 15.4 ●Pipe valley outer diameter (mm): 13.0 ●Pipe valley inner diameter (mm): 12.4 ●Mounting screw: Parallel pipe thread ●Pipe outer diameter 16mm (nominal 13), 20mm (nominal 20) ●The number after the part number is nominal x length (mm) *Caution Flexible pipes should be bent at the specified bending radius (more than three times the nominal diameter) and do not bend repeatedly. In addition, do not bend the base of the nut (within 50 mm from the seat surface). Material/Finish: Pipe: Stainless steel (SUS304) Nut: Brass Gasket: Ethylene propylene rubber (EPDM)
