KANA Coupling Sprocket Main Unit Chain Pitch 19.05mm 6018H 1 S

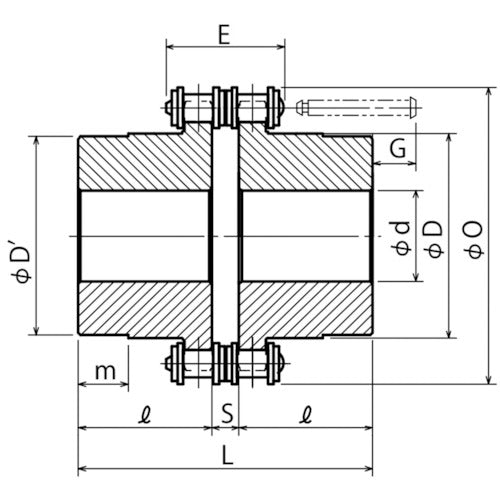

Catalog number: 6018H Features: ●Can transmit power from shafts with different diameters. ●Set of two chain coupling sprockets and a special roller chain. Applications: ●For power transmission and driving of various equipment. Specifications: ● Shaft diameter range maximum (mm): 55 ● Shaft diameter range minimum (predrilled hole H10) (mm): 22 (20) ● Chain pitch (mm): 19.05 ● Maximum width of chain used (mm): 52.5 ● Body dimension S (mm): 11.5 ● Body dimension O (mm): 128 ● Body dimension m (mm): 18 ● Body dimension L (mm): 123.5 ● Body dimension l (mm): 56 ● Body dimension G (mm): 19 ● Body dimension D' (mm): 85 ● Body dimension D (mm): 88 ● Compatible case: 6018C ● Approximate weight (kg): 6.2 ● Chain coupling body material / finish: ● Sprocket: Carbon steel for mechanical structure, heat treatment: High-frequency hardening of tooth tip ● Roller chain: Iron Set contents / accessories: ● Chain coupling sprocket x 2 ● Roller chain x 1
