KANA Coupling Sprocket Main Unit Chain Pitch 38.1mm 12018H 1 S

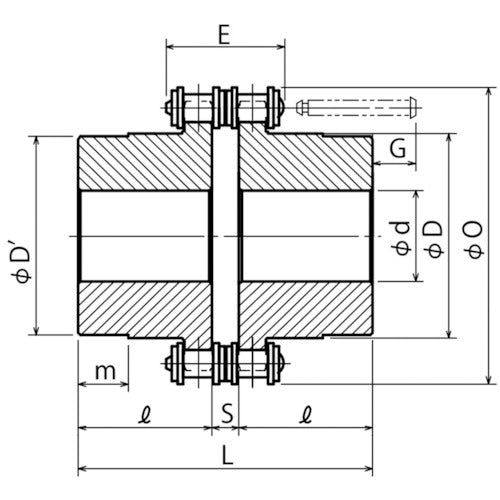

Catalog number: 12018H Features: ●Can transmit power from shafts with different diameters. ●Set of two chain coupling sprockets and a special roller chain. Applications: ●For transmission and driving of various equipment. Specifications: ● Shaft diameter range maximum (mm): 125 ● Shaft diameter range minimum (predrilled hole H10) (mm): 37 (35) ● Chain pitch (mm): 38.1 ● Maximum width of chain used (mm): 101.2 ● Body dimension S (mm): 22.7 ● Body dimension O (mm): 255 ● Body dimension m (mm): 56 ● Body dimension L (mm): 202.7 ● Body dimension l (mm): 90 ● Body dimension G (mm): 53 ● Body dimension D' (mm): 170 ● Body dimension D (mm): 173 ● Compatible case: 12018C ● Approximate weight (kg): 47 ● Chain coupling body material / finish: ● Sprocket: Carbon steel for mechanical structure, heat treatment: High-frequency hardening of teeth ● Roller chain: Iron Set contents / accessories: ● Chain coupling sprocket x 2 ● Roller chain x 1
