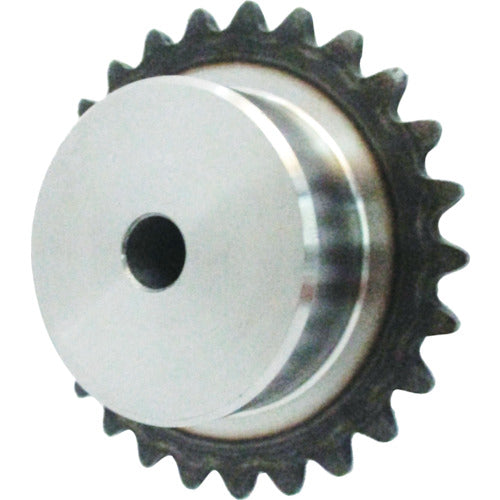

KANA sprocket 35, number of teeth 35, suitable chain No. 35 NK35B35 1 piece

Catalog number: NK35B35 Features: ●A standard KANA sprocket with a wide variety of variations and large stock. Applications: ●For transmission and driving of various devices. Specifications: ●Number of teeth: 35 ●Outer diameter (mm): 112 ●Shaft hole diameter pilot hole (mm): 11 ●Shape: Machined specifications ●Compatible chain: No. 35 ●Boss diameter (mm): 53 ●Boss length (mm): 22 ●Chain pitch: 9.525mm ●Bush link inner width: 4.78mm ●Bush outer diameter: 5.08mm ●Tooth width: 4.4mm (maximum) Material/Finish: ●Carbon steel for machine construction ●Heat treatment: High-frequency hardening of tooth tips ●Machine specifications Note: ●Changes and cancellations cannot be accepted after an order has been placed. ●Returns are subject to the manufacturer's return and pick-up conditions. ●Even if the item is returnable, an additional fee will be incurred.
