KANA Rack Gear M3 KF3-500 1 piece

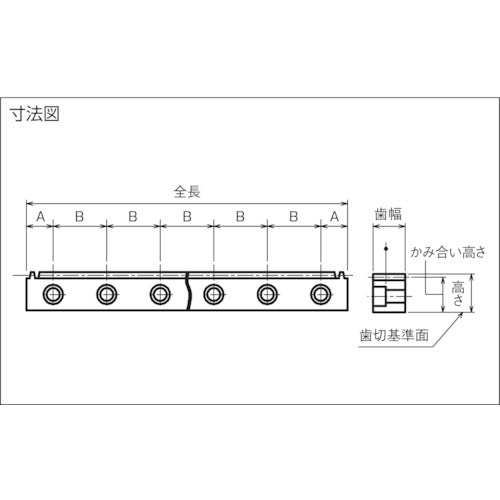

Catalog number: KF3-500 Features: ●KF rack gears are ideal for replacing other companies' products. ●Both ends are finished. ●Can be joined to create the desired length. In that case, use a matching rack to match the pitch of the connection. Applications: ●Used in all kinds of machines, including printing machines, automatic packaging machines, and electrical component manufacturing lines. Specifications: ●Module: 3 ●Total length l (mm): 499.51 ●Total length (mm): 499.51 ●Effective number of teeth: 53 ●Meshing height h" (mm): 32 ●Tooth width b (mm): 30 ●Height (mm): 35 ●Meshing height (mm): 32.0 ●Tooth width (mm): 30 ●Effective number of teeth: 53 ●Module (m): 3 ●Total length (L): 499.51 ●Precision: Grade 4, Tooth type: Straight teeth, Pressure angle: 20°, Material: S45C, Heat treatment: Normalizing, Surface hardness: HS26-31, Surface treatment: Black oxide coating, M3, Both ends finished Material/Finish: ●Carbon steel for mechanical construction Note: ●We cannot accept changes or cancellations after an order has been placed. ●Returns are subject to the manufacturer's conditions for return and collection. ●Even if the item is returnable, additional costs will apply.
