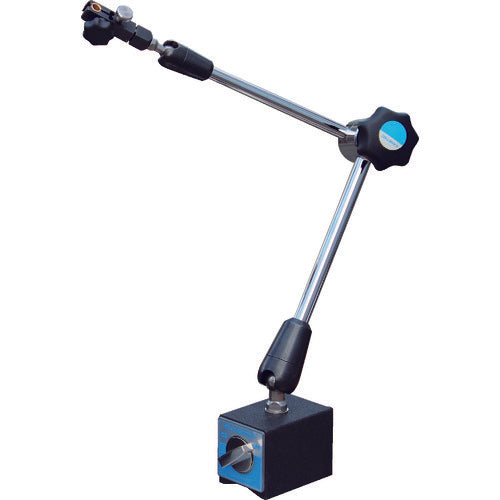

KANETEC Magnetic Stand (Arm Type) High Lock Base Long Arm Type Adsorption Force 1000N MB-MX40F 1 pc

Catalog number: MB-MX40F Features: ● A strong magnet and a sturdy clamping mechanism enable stable and highly accurate measurement work. ● Various positions can be locked at once by tightening a single dial, providing stable fixing force. ● No maintenance is required. ● The arm is freely movable and can be locked at any position by tightening the knob. Applications: ● Used as a measuring instrument holder when measuring with dial gauge type measuring instruments. Specifications: ● Adhesive force (N): 1000 ● Magnet width (mm): 50 ● Magnet depth (mm): 73 ● Magnet height (mm): 55 ● Arm length (mm): 461 (66 + 175 + 220) ● Arm mounting screw: M8 x 1.25 ● Measuring instrument mounting hole: 6mm, 8mm ● Measuring instrument mounting: 6mm, 8mm holes, with dovetail groove
