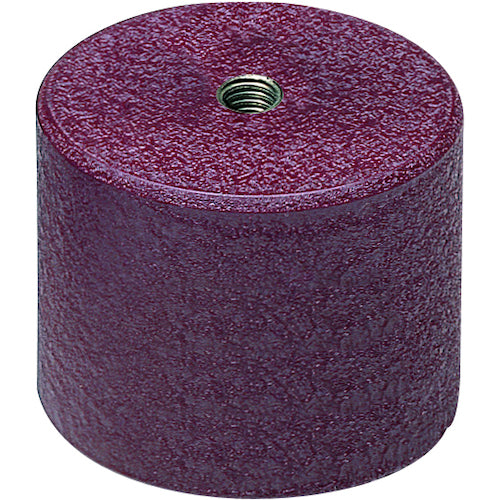

KANETEC permanent magnet holder, neodymium magnet, circular, with screw hole, outer diameter 50 mm, KM-05C, 1 piece

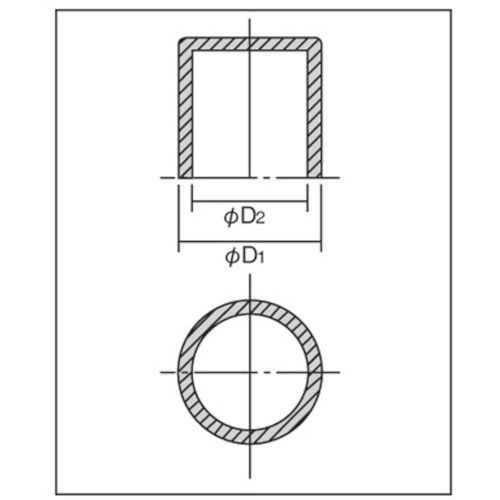

Catalog number: KM-05C Features: ● One-sided adsorption with magnetic force concentrated on the ring-shaped patterned surface, small but strong magnetic force. ● The type with mounting screws (opposite the adsorption surface) can be widely used by attaching it to jigs, etc. ● Can be embedded in molds, etc. ● Adsorption force is about 85% at 50°C and 70% at 100°C, assuming 20°C is 100. ● A permanent magnet with a structure that efficiently generates magnetic force and a wide range of applications. ● Threaded on the back. ● Surface is painted. Applications: ● For holding drawings, rulers, paper molds, etc. ● For holding workpieces during wire cutting work. ● A permanent magnet with a structure that efficiently generates magnetic force and a wide range of applications. ● Threaded on the back. ● Surface is painted. Specifications: Adhesive force (N): 500; Outer diameter (mm): 50; Height (mm): 40; Mounting screw: M8 x 1.25; d (mm): 46; h (mm): 25; Maximum operating temperature (continuous use): 100°C Material/Finish: Magnet: Neodymium magnet
